Upgrade Notes¶

This page provides some considerations for upgrading insight-server and insight-agent.

insight-server¶

Upgrade from v0.39.x (or lower) to v0.40.x or higher¶

In version v0.40.0, the Grafana Operator will be upgraded from v4 to v5, introducing significant CRD changes. The upgrade process will be automatically completed by helm upgrade.

If users need to perform a helm rollback to a previous version (e.g., from v0.40.0 to v0.39.0), they must manually clean up the v5 Custom Resources (CRs) using the following commands:

kubectl delete grafanas.grafana.integreatly.org -n insight-system --selector operator.insight.io/managed-by=insight --ignore-not-found=true
kubectl delete grafanadashboards.grafana.integreatly.org -n insight-system --selector operator.insight.io/managed-by=insight --ignore-not-found=true
kubectl delete grafanadatasources.grafana.integreatly.org -n insight-system --selector operator.insight.io/managed-by=insight --ignore-not-found=true

The Grafana Deployment in v0.40.x will include a dashboard-discover sidecar, which is used to write specific GrafanaDashboard(v4) resources and ConfigMaps from the existing environment into the directory specified by the Grafana dashboard provider (/var/lib/grafana/plugins/dashboards).

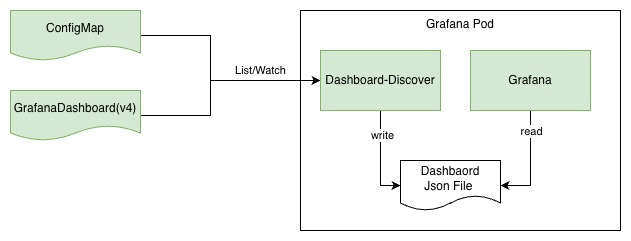

The architecture diagram of dashboard-discover is as follows:

The specific rules are as follows:

1. GrafanaDashboard(v4)

The dashboard-discover sidecar will watch for GrafanaDashboard(v4) resources across all namespaces in the cluster that have the label: operator.insight.io/managed-by=insight, and write their JSON content into the /var/lib/grafana/plugins/dashboards directory of the Grafana container.

1. ConfigMap

The dashboard-discover sidecar will watch for ConfigMaps across all namespaces in the cluster that have the labels: operator.insight.io/managed-by=insight,operator.insight.io/dashboard=true, and write all content under their data field into the /var/lib/grafana/plugins/dashboards directory of the Grafana container.

If you need to store JSON files in a specific folder, you can add the following label to the corresponding resource: operator.insight.io/dashboard-folder=your-folder

Upgrade from v0.26.x (or lower) to v0.27.x or higher¶

In v0.27.x, the switch for the vector component has been separated. If the existing environment has vector enabled, you need to specify --set vector.enabled=true when upgrading the insight-server.

Upgrade from v0.19.x (or lower) to 0.20.x¶

Before upgrading Insight , you need to manually delete the jaeger-collector and jaeger-query deployments by running the following command:

kubectl -n insight-system delete deployment insight-jaeger-collector
kubectl -n insight-system delete deployment insight-jaeger-query

Upgrade from v0.17.x (or lower) to v0.18.x¶

In v0.18.x, there have been updates to the Jaeger-related deployment files, so you need to manually run the following commands before upgrading insight-server:

kubectl -n insight-system delete deployment insight-jaeger-collector
kubectl -n insight-system delete deployment insight-jaeger-query

There have been changes to metric names in v0.18.x, so after upgrading insight-server, insight-agent should also be upgraded.

In addition, the parameters for enabling the tracing module and adjusting the ElasticSearch connection have been modified. Refer to the following parameters:

+  --set global.tracing.enable=true \
-  --set jaeger.collector.enabled=true \
-  --set jaeger.query.enabled=true \
+  --set global.elasticsearch.scheme=${your-external-elasticsearch-scheme} \
+  --set global.elasticsearch.host=${your-external-elasticsearch-host} \
+  --set global.elasticsearch.port=${your-external-elasticsearch-port} \
+  --set global.elasticsearch.user=${your-external-elasticsearch-username} \
+  --set global.elasticsearch.password=${your-external-elasticsearch-password} \
-  --set jaeger.storage.elasticsearch.scheme=${your-external-elasticsearch-scheme} \
-  --set jaeger.storage.elasticsearch.host=${your-external-elasticsearch-host} \
-  --set jaeger.storage.elasticsearch.port=${your-external-elasticsearch-port} \
-  --set jaeger.storage.elasticsearch.user=${your-external-elasticsearch-username} \
-  --set jaeger.storage.elasticsearch.password=${your-external-elasticsearch-password} \

Upgrade from v0.15.x (or lower) to v0.16.x¶

In v0.16.x, a new feature parameter disableRouteContinueEnforce in the vmalertmanagers CRD is used. Therefore, you need to manually run the following command before upgrading insight-server:

kubectl apply --server-side -f https://raw.githubusercontent.com/VictoriaMetrics/operator/v0.33.0/config/crd/bases/operator.victoriametrics.com_vmalertmanagers.yaml --force-conflicts

kubectl apply --server-side -f insight/dependency-crds --force-conflicts

insight-agent¶

Upgrade from v0.28.x (or lower) to v0.29.x¶

Due to the upgrade of the Opentelemetry community operator chart version in v0.29.0, the supported values for featureGates in the values file have changed. Therefore, before upgrading, you need to set the value of featureGates to empty, as follows:

-  --set opentelemetry-operator.manager.featureGates="+operator.autoinstrumentation.go,+operator.autoinstrumentation.multi-instrumentation,+operator.autoinstrumentation.nginx" \
+  --set opentelemetry-operator.manager.featureGates=""

Upgrade from v0.23.x (or lower) to v0.24.x¶

In v0.24.x, CRDs have been added to the OTEL operator chart. However, helm upgrade does not update CRDs, so you need to manually run the following command:

kubectl apply -f https://raw.githubusercontent.com/open-telemetry/opentelemetry-helm-charts/main/charts/opentelemetry-operator/crds/crd-opentelemetry.io_opampbridges.yaml

If you are performing an offline installation, you can find the above CRD yaml file after extracting the insight-agent offline package. After extracting the insight-agent Chart, manually run the following command:

kubectl apply -f charts/agent/crds/crd-opentelemetry.io_opampbridges.yaml

Upgrade from v0.19.x (or lower) to v0.20.x¶

In v0.20.x, Kafka log export configuration has been added, and there have been some adjustments to the log export configuration. Before upgrading insight-agent , please note the parameter changes. The previous logging configuration has been moved to the logging.elasticsearch configuration:

-  --set global.exporters.logging.host \
-  --set global.exporters.logging.port \
+  --set global.exporters.logging.elasticsearch.host \
+  --set global.exporters.logging.elasticsearch.port \

Upgrade from v0.17.x (or lower) to v0.18.x¶

Due to the updated deployment files for Jaeger In v0.18.x, it is important to note the changes in parameters before upgrading the insight-agent.

+  --set global.exporters.trace.enable=true \
-  --set opentelemetry-collector.enabled=true \
-  --set opentelemetry-operator.enabled=true \

Upgrade from v0.16.x (or lower) to v0.17.x¶

In v0.17.x, the kube-prometheus-stack chart version was upgraded from 41.9.1 to 45.28.1, and there were also some field upgrades in the CRD used, such as the attachMetadata field of servicemonitor. Therefore, the following command needs to be rund before upgrading the insight-agent:

kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.65.1/example/prometheus-operator-crd/monitoring.coreos.com_servicemonitors.yaml --force-conflicts

If you are performing an offline installation, you can find the yaml for the above CRD in insight-agent/dependency-crds after extracting the insight-agent offline package.

Upgrade from v0.11.x (or earlier) to v0.12.x¶

v0.12.x upgrades kube-prometheus-stack chart from 39.6.0 to 41.9.1, including prometheus-operator to v0.60.1, prometheus-node-exporter chart to v4.3.0. Prometheus-node-exporter uses Kubernetes recommended label after upgrading, so you need to delete node-exporter daemonset. prometheus-operator has updated the CRD, so you need to run the following command before upgrading the insight-agent:

1
2
3
4
5
6
7
8
9

kubectl delete daemonset insight-agent-prometheus-node-exporter -n insight-system
kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.60.1/example/prometheus-operator-crd/monitoring.coreos.com_alertmanagerconfigs.yaml --force- conflicts
kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.60.1/example/prometheus-operator-crd/monitoring.coreos.com_alertmanagers.yaml --force- conflicts
kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.60.1/example/prometheus-operator-crd/monitoring.coreos.com_podmonitors.yaml --force- conflicts
kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.60.1/example/prometheus-operator-crd/monitoring.coreos.com_probes.yaml --force- conflicts
kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.60.1/example/prometheus-operator-crd/monitoring.coreos.com_prometheuses.yaml --force- conflicts
kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.60.1/example/prometheus-operator-crd/monitoring.coreos.com_prometheusrules.yaml --force- conflicts
kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.60.1/example/prometheus-operator-crd/monitoring.coreos.com_servicemonitors.yaml --force- conflicts
kubectl apply --server-side -f https://raw.githubusercontent.com/prometheus-operator/prometheus-operator/v0.60.1/example/prometheus-operator-crd/monitoring.coreos.com_thanosrulers.yaml --force- conflicts

kubectl apply --server-side -f insight-agent/dependency-crds --force-conflicts
